Description

The Multi-Process Workhorse

The POWER MIG 360MP is the professional grade multi-process welding system. Capable of Stick, TIG, MIG and Flux-Cored welding with advanced features such as MIG and TIG Pulse Welding, Ready. Set. Weld. set up, ArcFX technology and Memory Capability. This package is specifically designed for Trailer Manufacturing and General Fabrication. Includes everything the K4467-1 includes plus Magnum Pro AL gun and set up for aluminum. Maximum recommended thickness for aluminum would be 3/8.

Ready. Set. Weld. Quick Set-UP

Setting up and reviewing settings and advanced options is simple with this machine. 7-inch LED screen visually is interactive and easy to follow during the set up process. Adjustability is right at your fingertips for all three processes with the push-and-turn digital controls. Ability to weld 4XXX and 5XXX series aluminum with Pulse Processes. Feed aluminum three ways- Push Gun, Spool Gun or a Push-Pull Gun.

Pulse-on-Pulse Mode

Uses a sequence of varying pulse wave shapes to produce TIG-like bead appearance and excellent weld properties when MIG welding aluminum. Pulse-On-Pulse controls arc length and heat input together, making it easier to achieve good penetration.

Pulse MIG

Varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input, which minimizes warping and burn through on thin materials. Pulse MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P waveforms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys.

TIG Pulse

Can help to minimize burn through on thin materials. It can also help to increase travel speed and result in smaller bead width. Lower heat input may lessen warpage of parts, especially stainless steel materials.

TIG pulse can be turned on or off in the advanced options menu. Single knob control sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz. The pulse setting automatically regulates the output current between the peak amperage set by the amptrol (if used) and the background amperage, which is equal to 60% of the peak. The peak pulse % on-time is fixed at 50%.

Power Mode

Uses high-speed regulation of output power to deliver fast responses to arc changes, such as using a whip technique. The result is improved MIG welding performance, including low spatter, more uniform, consistent bead wetting and controlled penetration. Power Mode benefits are especially noticeable on low voltage applications on thin steel and stainless steel material.

ArcFX Technology

Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome

Included with Product

• POWER MIG 360MP Multi-Process Welder - K4467-1
• 12F to 7M Adapter - K2610-2
• Drive Roll Kit 3/16" Aluminum Wire - KP1695-3/64A

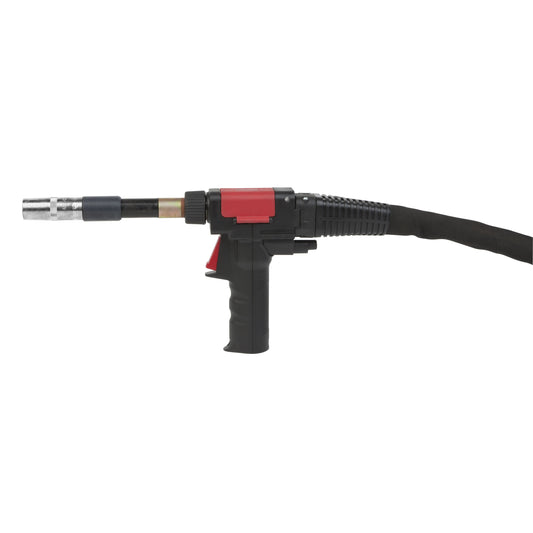

• Magnum PRO AL FC 225 Air 12P FT-25ft - K4797-2
• SuperGlaze 5554 - ED029573
